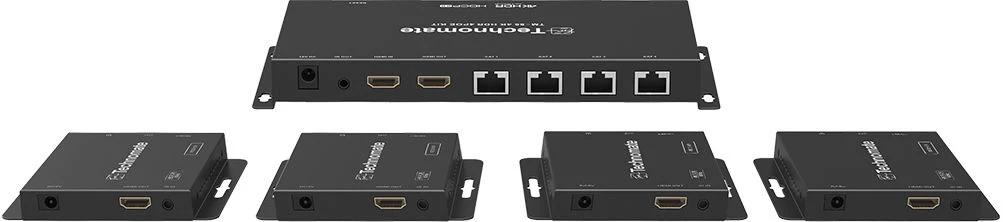

Technomate 4 x 4 HDMI Matrix POE 1080P

A truly smart solution for HDMI 1080p Matrix. You only need to power the Matrix. The HDMI Receivers require no power as they will receive the power automatically over the same single CAT cable as the audio & video.

Therefore, you no longer need a power supply next to the HDMI Receiver's TV. It is also super slim at only 15mm so can be easily hidden from view, behind a TV.

There are 4 HDMI Mirrored outputs so that you can use this system on an additional 4 displays, total of 8 displays including the CAT outputs. Each of the HDMI Mirrored ports will duplicate the output of the CAT it is associated with it.

*Please note, "up to" distances above are based on full copper CAT6 cable. For full copper CAT5e cable, distances will be around 10m less.

Features

HDMI 4x4 Matrix
Includes 4 PoE Receivers - require no power
1080p up to 55m
Full HD 1080p 24fps 50/60Hz
Each HDMI input has an HDMI loop-through (mirrored)
IR Control
EDID
Web Control Interface
RS232 Supported
1U Rack Mountable

*Please note, "up to" distances above are based on full copper CAT6 cable. For full copper CAT5e cable, distances will be around 10m less.
