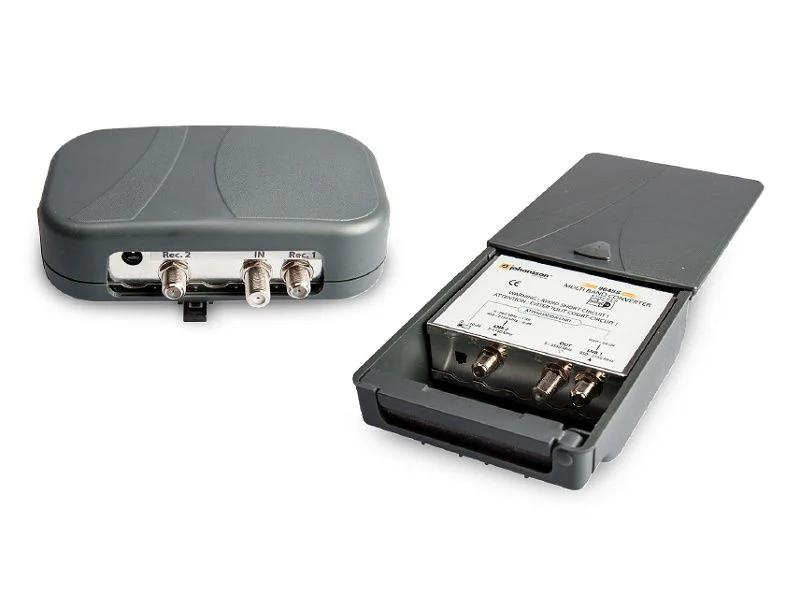

JOHANSSON DiSEqC Stacker / De-Stacker

JOHANSSON DiSEqC Stacker / De-Stacker

JOHANSSON DiSEqC Stacker / De-Stacker

9645KIT Stacker-Destacker

Two input Band stacking Multi Band Converter

The Stacker-Destacker is the perfect solution to upgrade an old single-cable system with a twin LNB (or quad + DiSEqC switch ref 9920).

To be used in combination with a dual input receiver (PVR) or 2 separate single input receivers.

No power adapter needed.

Power the device with the satellite receiver.

Wall / mast mounting with strap.

How it works?

Instruction PDF

Specifications

9645KIT
		Stacker	Destacker
Inputs	-	2	1
Input frequency	MHz	5-2150 MHz / 950-2150 MHz	5-3550 MHz with "F" High Quality connector
Outputs	-	1	2
Output frequency	MHz	5-3550 MHz with "F" High Quality connector	5-2150 MHz / 950-2150 MHz
Insertion loss / gain	dB	-1 @ 5-862 MHz -3 @ 950-2150Mhz Converted Sat. Pos. 1 (0 dB) = +6 Converted Sat. Pos. 2 (10 dB att.) = +4	-1 @ 5-862 MHz -3 @ 950-2150Mhz Converted Sat. = +5
Max. Input level	dBµV	Pos. 1 (0dB) = 88 Pos. 2 (10 dB att.) = 98	-
Consumption	W	1,4 Optional power adapter available for more LNB current Ø 2.1mm
Dimensions	mm	125 x 115 x 45	150 x 90 x 40
General specification	-	Operating system up to 75m CT100 or 17 VAtC coaxial cable

$60.54

Original: $172.97

-65%

JOHANSSON DiSEqC Stacker / De-Stacker—

$172.97

$60.54

JOHANSSON DiSEqC Stacker / De-Stacker

9645KIT Stacker-Destacker

Two input Band stacking Multi Band Converter

The Stacker-Destacker is the perfect solution to upgrade an old single-cable system with a twin LNB (or quad + DiSEqC switch ref 9920).

To be used in combination with a dual input receiver (PVR) or 2 separate single input receivers.

No power adapter needed.

Power the device with the satellite receiver.

Wall / mast mounting with strap.

How it works?

Instruction PDF

Specifications

9645KIT
		Stacker	Destacker
Inputs	-	2	1
Input frequency	MHz	5-2150 MHz / 950-2150 MHz	5-3550 MHz with "F" High Quality connector
Outputs	-	1	2
Output frequency	MHz	5-3550 MHz with "F" High Quality connector	5-2150 MHz / 950-2150 MHz
Insertion loss / gain	dB	-1 @ 5-862 MHz -3 @ 950-2150Mhz Converted Sat. Pos. 1 (0 dB) = +6 Converted Sat. Pos. 2 (10 dB att.) = +4	-1 @ 5-862 MHz -3 @ 950-2150Mhz Converted Sat. = +5
Max. Input level	dBµV	Pos. 1 (0dB) = 88 Pos. 2 (10 dB att.) = 98	-
Consumption	W	1,4 Optional power adapter available for more LNB current Ø 2.1mm
Dimensions	mm	125 x 115 x 45	150 x 90 x 40
General specification	-	Operating system up to 75m CT100 or 17 VAtC coaxial cable
